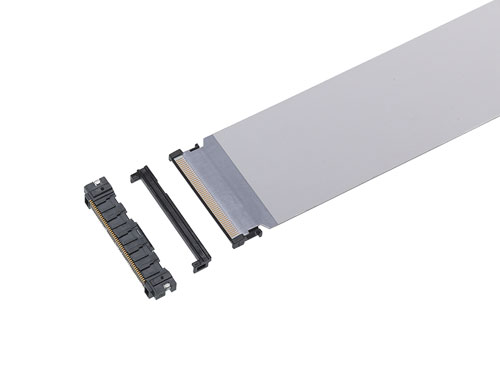

Molex, LLC is now offering the capability to create flat flex and etched polyimide Premo-Flex Cable Jumpers and Assemblies with low-voltage differential signal (LVDS) connectors. This new capability provides ready-to-use terminated cable jumpers for LVDS applications, simplifying manufacturing processes and streamlining procurement.
Premo-Flex LVDS Cable Jumpers and Assemblies deliver robust and superior signal integrity performance over long distances and are ideal for applications such as large displays and HDTVs. Like previously released options, the new custom cable jumpers and assemblies are durable, flexible and available in a variety of pitches, cable lengths, thicknesses and formats.
Connector options for Premo-Flex LVDS Cable Jumpers and Assemblies include: one-piece (15, 24 and 33 circuits), two-piece (30, 50 and 80 circuits), and one-touch LVDS (41 and 51 circuits). “These options provide customers with a great deal of design flexibility,” said David Falla, associate product manager, Molex. “The one-piece system provides strong retention and space savings, while the two-piece system offers high circuit sizes.”
Premo-Flex LVDS Cable Jumpers and Assemblies offer 100-Ohms-controlled impedance, making them suitable for HD video displays, while grounding terminals accommodate high-speed, high-frequency signal requirements. The jumpers and assemblies are gold-plated and can operate in a temperature range from –40 to 80°C.
